📡 Como cadastrar um CONCENTRADOR CISCO no ReceitaNet

🧠 0.0 – RR – RADIUS RECEITANET

Saiba mais sobre o funcionamento do RADIUS ReceitaNet clicando abaixo:

RR – RADIUS RECEITANET

🛠️ 1.0 – Cadastro de Servidores

Vá em Cadastro > Diversos servidores e clique no botão “+”.

🔌 2.0 – Novo Servidor do Tipo RADIUS

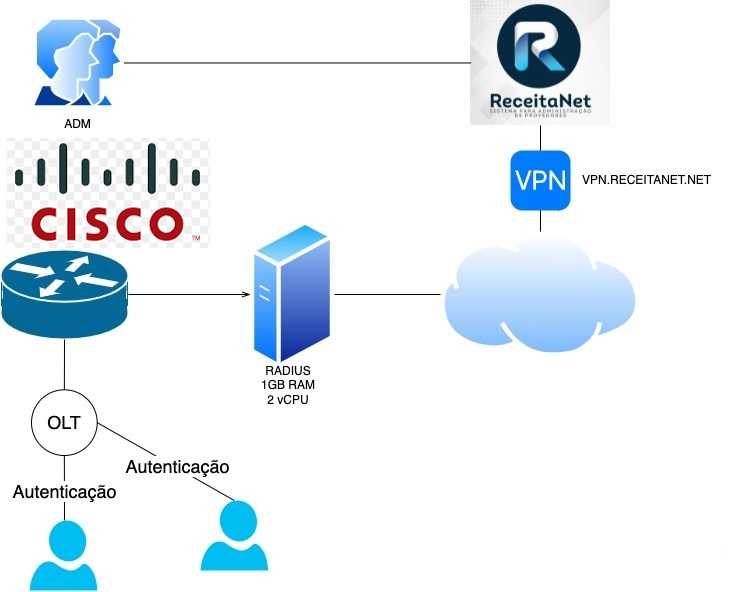

2.1 – Comunicação ReceitaNet com RADIUS

🔒 3.0 – Servidores de Autenticação

📍 4.0 – Cadastrar NAS CISCO

📄 Campos importantes:

• Nome: Identificação do equipamento
• IP do NAS: IP do Cisco liberado no RADIUS
• IP do RADIUS: Deve estar liberado no firewall do Cisco
• Senha: Senha de consulta para autenticação

⚙️ 5.0 – Controle de Velocidade (QoS)

Ajuste os atributos de velocidade conforme o equipamento Cisco.

Visualize os atributos de controle de banda ao clicar no botão “RADIUS”.

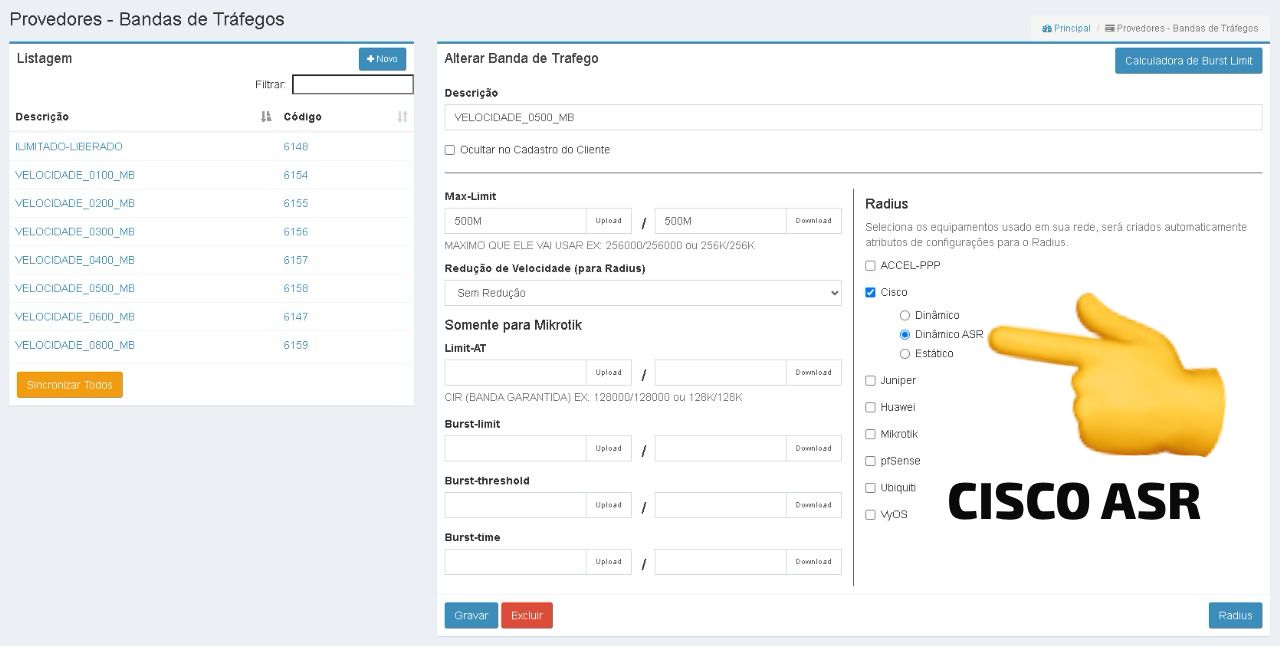

5.1 – QoS Dinâmico ❗

ATENÇÃO: O parâmetro rate-limit não é suportado em ASR1K. Utilize QoS estático.

5.2 – QoS Dinâmico ASR1K ❗

Cisco-AvPair = qos-policy-in=add-class(sub,(class-default), police(104857600))
Cisco-AvPair = qos-policy-out=add-class(sub,(class-default), police(104857600))

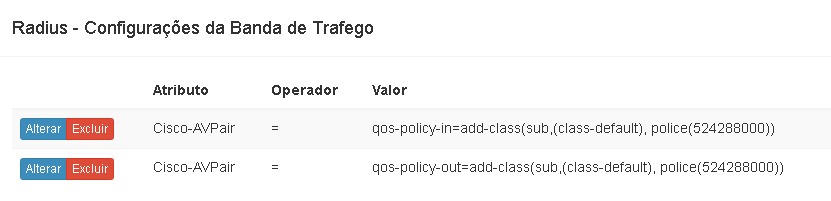

Ao Marcar Dinâmico ASR – Automaticamente o RECEITANET criará os Atributos abaixo.

Agradecimento ao Consultor Derick +55 82 9656-7029

5.3 – QoS Estático 🧩

🔧 6.0 – Configuração Personalizada

Ao clicar em RADIUS, é possível incluir ou excluir atributos de forma personalizada.

🚫 7.0 – Configuração de Bloqueio

Clientes bloqueados devem ter pools dedicados:

• bloqueadoipv4
• bloqueadoipv6

Agradecimento ao Consultor Samuel Reis +55 11 97739-5297

📘 8.0 – Exemplo para Cisco ASR1002

10.252.252.8 = IP Servidor RADIUS

Building configuration...

Current configuration : 8946 bytes
!
! Last configuration change at 13:56:08 BRA Tue May 6 2025 by pedromedina
! NVRAM config last updated at 13:56:35 BRA Tue May 6 2025 by pedromedina
!
version 15.5
service timestamps debug datetime localtime
service timestamps log datetime localtime
no platform punt-keepalive disable-kernel-core
!
hostname BRAS-FW
!
boot-start-marker
boot-end-marker
!
vrf definition Mgmt-intf
 !
 address-family ipv4
 exit-address-family
 !
 address-family ipv6
 exit-address-family
!
aaa new-model
!
aaa group server radius RADIUS-PPPOE
 server name NAS-PPPOE
 ip radius source-interface TenGigabitEthernet0/1/0.101
!
aaa authentication login default local
aaa authentication login ssh local
aaa authentication ppp default group radius local
aaa authorization console
aaa authorization config-commands
aaa authorization exec default local
aaa authorization network default group radius
aaa authorization subscriber-service default local group radius
aaa accounting delay-start all
aaa accounting session-duration ntp-adjusted
aaa accounting update periodic 10
aaa accounting include auth-profile framed-ip-address
aaa accounting include auth-profile framed-ipv6-prefix
aaa accounting include auth-profile delegated-ipv6-prefix
aaa accounting exec default start-stop group radius
aaa accounting network default start-stop group radius
aaa accounting system default start-stop group radius
!
aaa server radius dynamic-author
 client 10.252.252.8 server-key TSElDvYOMQ4Kv
 port 3799
 auth-type any
 ignore session-key
 ignore server-key
!
aaa session-id common
aaa policy interface-config allow-subinterface
ppp packet throttle 100 10 160
clock timezone BRA -4 0
!
no ip domain lookup
ip domain name fwnetwork.local
!
login on-success log
!
subscriber service multiple-accept
subscriber service session-accounting
subscriber access pppoe pre-authorize nas-port-id default
subscriber templating
!
multilink bundle-name authenticated
!
spanning-tree extend system-id
!
username suporte privilege 15 secret 5 $1$31Hj$2/FSGKKDgtBNorJ/UH1
!
redundancy
 mode none
!
policy-map OUT-PADRAO
 class class-default
  police cir 2000000000
   conform-action transmit
   exceed-action drop
policy-map IN-PADRAO
 class class-default
  police cir 2000000000
   conform-action transmit
   exceed-action drop
!
bba-group pppoe bras-fw
 virtual-template 1
 vendor-tag circuit-id service
 sessions per-mac limit 1
 sessions per-vlan limit 64000 inner 64000
 sessions auto cleanup
 pado delay 0
!
interface Loopback0
 ip address 10.99.99.1 255.255.255.255
!
interface GigabitEthernet0/0/0
 ip address 172.16.0.1 255.255.255.252
 no negotiation auto
 pppoe enable group bras-fw
!
interface GigabitEthernet0/0/1
 no ip address
 negotiation auto
!
interface GigabitEthernet0/0/2
 no ip address
 shutdown
 negotiation auto
!
interface GigabitEthernet0/0/3
 no ip address
 shutdown
 negotiation auto
!
interface TenGigabitEthernet0/1/0
 no ip address
!
interface TenGigabitEthernet0/1/0.101
 description UPLINK-CCR2004
 encapsulation dot1Q 101
 ip address 10.252.252.14 255.255.255.240
!
interface TenGigabitEthernet0/1/0.102
 description TESTE-PPPOE
 encapsulation dot1Q 102
 pppoe enable group bras-fw
!
interface GigabitEthernet0/2/0
 no ip address
 negotiation auto
!
interface GigabitEthernet0/2/1
 no ip address
 negotiation auto
!
interface GigabitEthernet0/2/1.100
 description GERENCIA-CISCO-BNG
 encapsulation dot1Q 100
 ip address 172.16.16.1 255.255.255.252
!
interface GigabitEthernet0/2/2
 no ip address
 shutdown
 negotiation auto
!
interface GigabitEthernet0/2/3
 description TESTE
 no ip address
 negotiation auto
 ipv6 enable
 pppoe enable group bras-fw
!
interface GigabitEthernet0/2/4
 no ip address
 shutdown
 negotiation auto
!
interface TenGigabitEthernet0/3/0
 no ip address
!
interface TenGigabitEthernet0/3/0.3001
 encapsulation dot1Q 3001
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3002
 encapsulation dot1Q 3002
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3003
 encapsulation dot1Q 3003
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3004
 encapsulation dot1Q 3004
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3005
 encapsulation dot1Q 3005
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3006
 encapsulation dot1Q 3006
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3007
 encapsulation dot1Q 3007
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3008
 encapsulation dot1Q 3008
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3009
 encapsulation dot1Q 3009
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3010
 encapsulation dot1Q 3010
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3011
 encapsulation dot1Q 3011
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3012
 encapsulation dot1Q 3012
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3013
 encapsulation dot1Q 3013
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3014
 encapsulation dot1Q 3014
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3015
 encapsulation dot1Q 3015
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3016
 encapsulation dot1Q 3016
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3017
 encapsulation dot1Q 3017
 pppoe enable group bras-fw
!
interface TenGigabitEthernet0/3/0.3018
 encapsulation dot1Q 3018
 pppoe enable group bras-fw
!
interface GigabitEthernet0
 vrf forwarding Mgmt-intf
 no ip address
 shutdown
 negotiation auto
!
interface Virtual-Template1
 mtu 1492
 ip unnumbered Loopback0
 no ip redirects
 no ip unreachables
 no ip proxy-arp
 ip verify unicast source reachable-via rx
 ip tcp adjust-mss 1452
 no logging event link-status
 peer default ip address pool pool-nat-1
 keepalive 20 3
 ppp authentication pap chap RADIUS-PPPOE
 ppp authorization RADIUS-PPPOE
 ppp accounting RADIUS-PPPOE
 ppp ipcp dns 1.1.1.1 8.8.8.8
 ppp ipcp ignore-map
 ppp ipcp address required
 ppp ipcp address unique
 ppp link reorders
 service-policy input IN-PADRAO
 service-policy output OUT-PADRAO
 ip virtual-reassembly
!
ip local pool pool-nat-1 100.64.0.2 100.64.3.255
ip local pool bloqueadoipv4 172.20.0.1 172.20.3.255
ip forward-protocol nd
!
no ip http server
no ip http secure-server
ip tftp source-interface GigabitEthernet0
ip route 0.0.0.0 0.0.0.0 10.252.252.1 name ROUTE-DEFAULT
ip ssh port 8022 rotary 1
ip ssh source-interface GigabitEthernet0/2/1.100
ip ssh version 2
!
snmp-server community cisco
snmp-server source-interface informs TenGigabitEthernet0/1/0.101
snmp-server location Manaus
snmp-server contact suporte@suporte.com.br
snmp mib expression owner cgnat name pool
  expression 0
snmp mib expression owner cgnat name total
  expression 0
!
radius-server attribute 44 include-in-access-req default-vrf
no radius-server attribute 77 include-in-acct-req
no radius-server attribute 77 include-in-access-req
radius-server attribute 6 on-for-login-auth
radius-server attribute 6 support-multiple
radius-server attribute 8 include-in-access-req
radius-server attribute 32 include-in-access-req
radius-server attribute 32 include-in-accounting-req
radius-server attribute 55 include-in-acct-req
radius-server attribute 55 access-request include
radius-server attribute 25 access-request include
radius-server attribute nas-port format d
radius-server attribute 31 mac format ietf upper-case
radius-server attribute 31 send nas-port-detail mac-only
radius-server attribute 31 remote-id
radius-server attribute nas-port-id include circuit-id
radius-server source-ports extended
radius-server retransmit 6
radius-server timeout 30
radius-server deadtime 1
radius-server unique-ident 42
radius-server authorization default Framed-Protocol ppp
radius-server vsa send cisco-nas-port
!
radius server RADIUS-PPPOE
 address ipv4 10.252.252.8 auth-port 1812 acct-port 1813
 timeout 30
 retransmit 5
 key TSElDvYOMQ4Kv
!
control-plane
!
call admission new-model
call admission limit 1500
call admission cpu-limit 80
call admission vpdn 10 1
call admission pppoe 10 1
call admission pppoa 10 1
call admission ip 10 1
!
line con 0
 privilege level 15
 transport preferred none
 stopbits 1
line aux 0
 transport preferred none
 stopbits 1
line vty 0 4
 privilege level 15
 password 7 040B060806171D5D000C0856
 transport preferred none
 transport input telnet ssh
line vty 5 15
 password 7 08714140002F54041B1E0145
 transport preferred none
 transport input telnet ssh
!
ntp server 200.160.0.8
!
end

BRAS-FW#

! Salvar configurações
write memory

Agradecimento ao Consultor Cisco Pedro Medina +55 92 8258-1204
Agradecimento ao Consultor Cisco – Keslley Kledston +55 92 9188-2864
